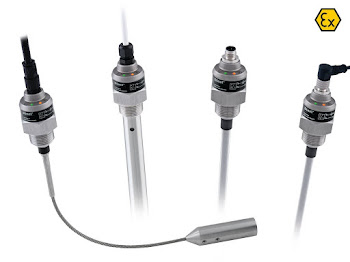

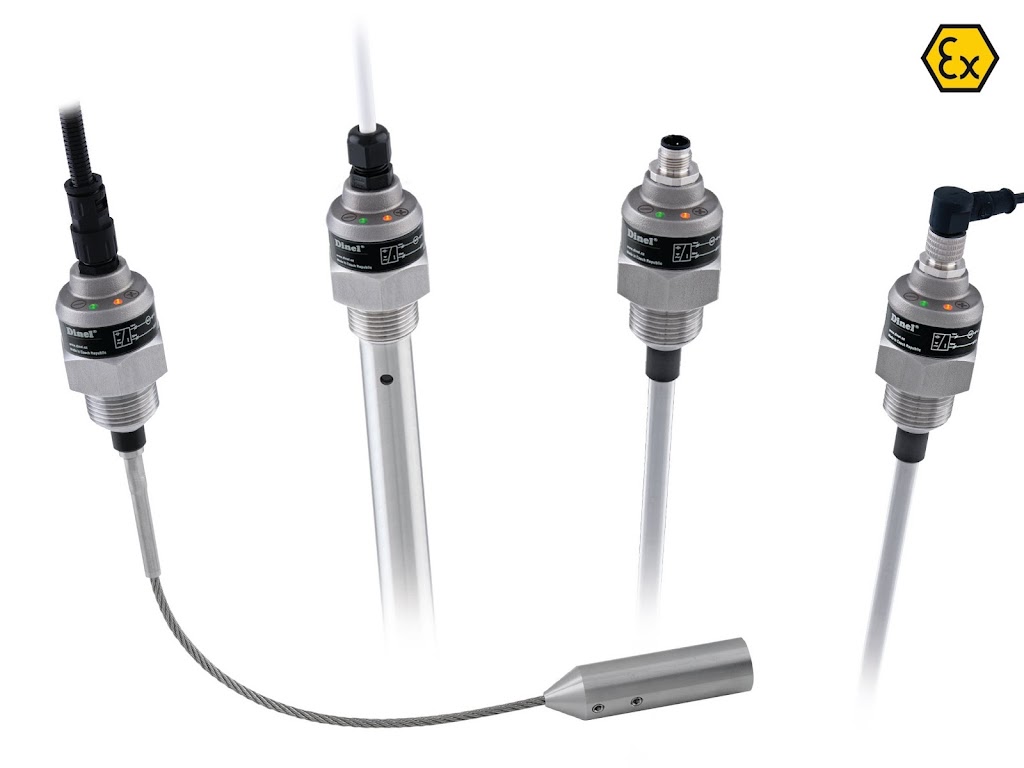

Capacitive level sensors DLS-35
For limit level sensing of liquid and bulk-solid materials
- Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
- Increased resistance to electromagnetic interference
- Simply sensitivity setting by means of magnetic pen
- Mode for quick setting of the sensor without the presence of medium
- LED state and function indication
- Wide choice of electric connection via connectors, cable glands, or protective conductor
- Material of housing and electrode from stainless steel
- High stability at high sensitivity (can be used for material with Ɛr ≥ 1,3)
- Xi, XiT versions for usage in explosive areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dust
Product variants Download
Videos
Product variants
| Language | Filename | File type | Last update | |
|---|---|---|---|---|
 | CZ | Datasheet | 12 / 4 / 2024 | |
| EN | Datasheet | 12 / 4 / 2024 | |
| RU | Datasheet | 3 / 12 / 2020 | |
 | CZ | Operating instruction | 12 / 4 / 2024 | |
| EN | Operating instruction | 12 / 4 / 2024 | |
| RU | Operating instruction | 3 / 12 / 2020 | |
| DE | Operating instruction | 3 / 12 / 2020 | |
 | CZ | Atex (DLS-35(M, T, MT)) | 21 / 10 / 2022 | |
| EN | Atex (DLS-35(M, T, MT)) | 21 / 10 / 2022 | |
 | CZ | Declaration of conformity (DLS-35N) | 20 / 11 / 2022 | |
| EN | Declaration of conformity (DLS-35N) | 20 / 11 / 2022 | |
| CZ | Declaration of conformity (DLS-35Xi) | 27 / 7 / 2023 | |
| EN | Declaration of conformity (DLS-35Xi) | 27 / 7 / 2023 | |
| - | 3D model DLS-35 | zip | 16 / 7 / 2019 |
Videos
Capacitive level sensor DLS-35, quick setting of the mode O
Capacitive level sensor DLS-35, quick setting of the mode C
Capacitive level sensor DLS-35, basic setting - mode O
Capacitive level sensor DLS-35, basic setting of the mode C
Capacitive level sensor DLS-35, slight increase in sensitivity
Capacitive level sensor DLS-35, slightly decreasing sensitivity
