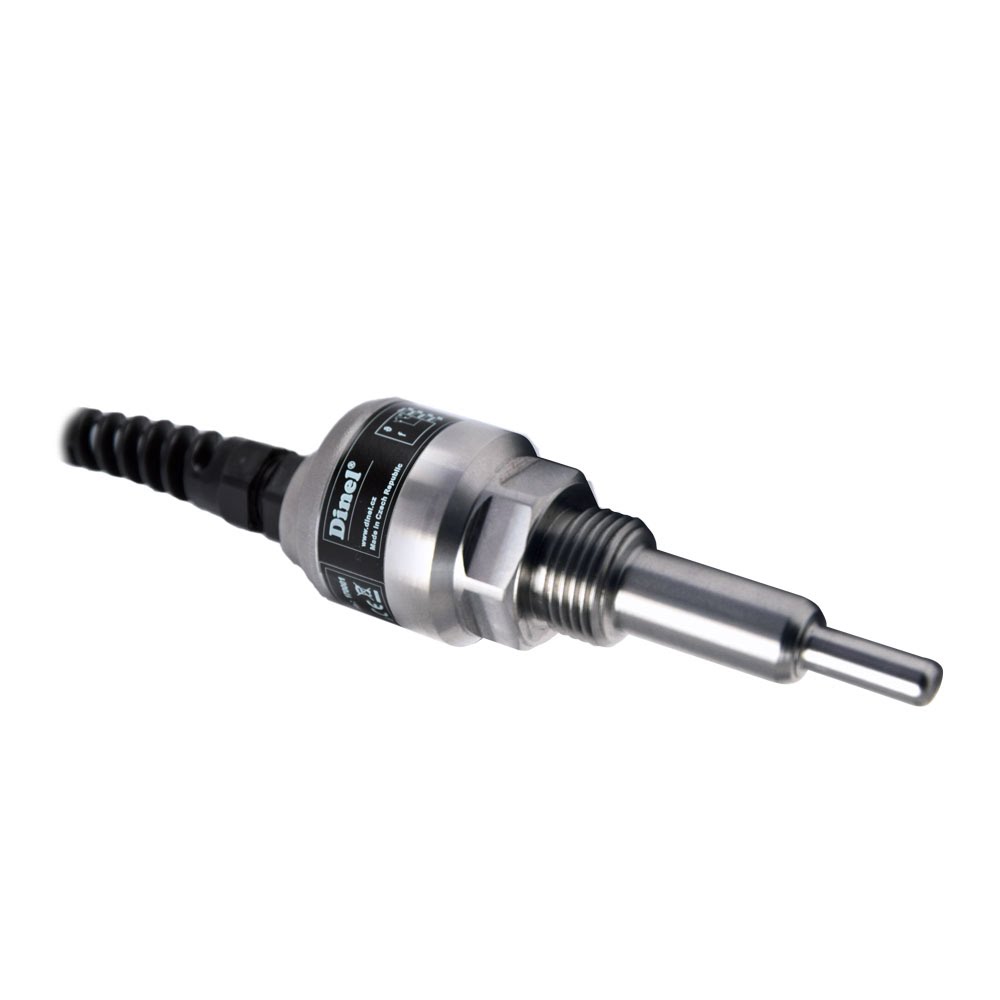

Thermal flow sensor TFS-35

For limit and continuous flow rate sensing of liquids and for monitoring their temperature.

  • These sensors are intended for installation in pipes, in which the actual flow and temperature are monitored.
  • Flow rate measurement is shown in a bar graph by five green LED diodes and in the same graduation, it is possible to select the limit for output switching.
  • Can be selected either 1x current output 4..20 mA and 1x limit PNP output, or 2x limit PNP output.
  • Optical indication of output states (flow and temperature) by two LEDs.
  • Settings by means of the magnetic pen.
  • Stainless steel housing.

More informations about TFS-35 here
