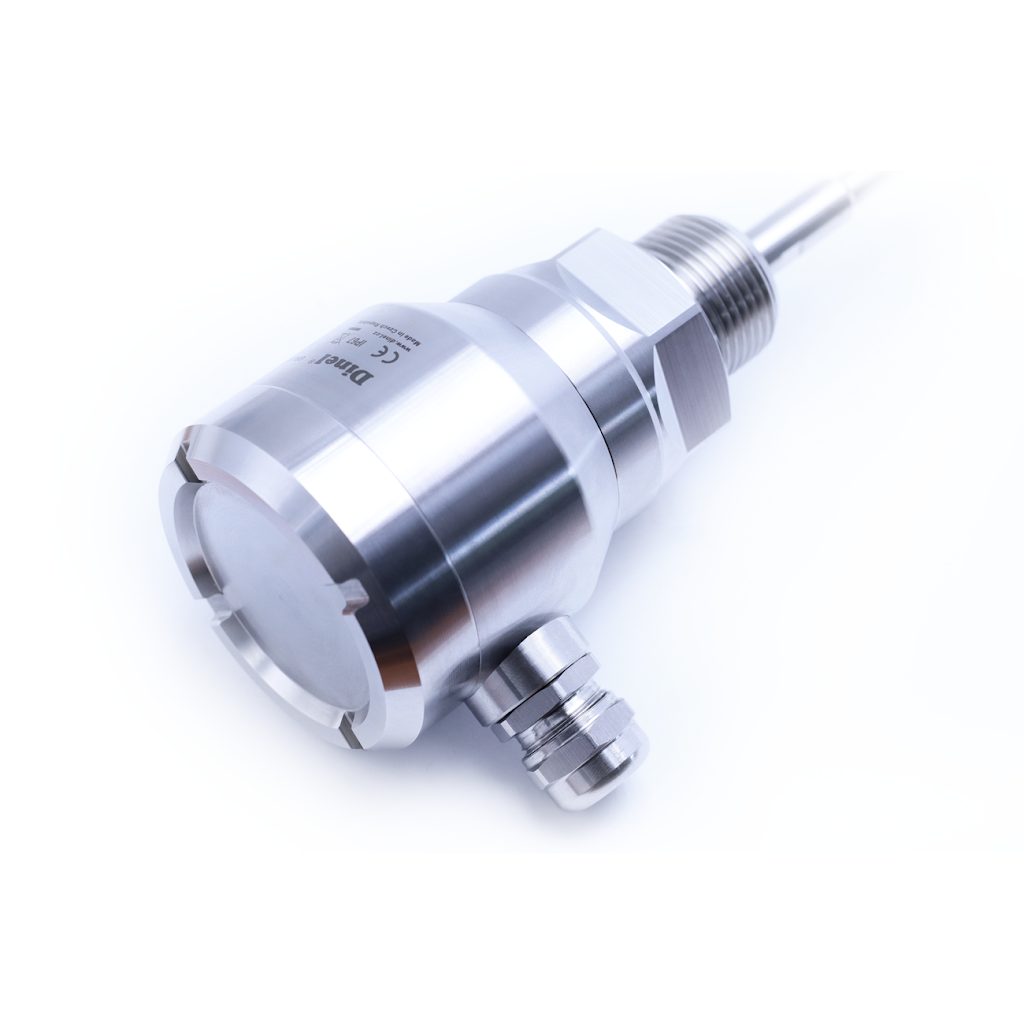

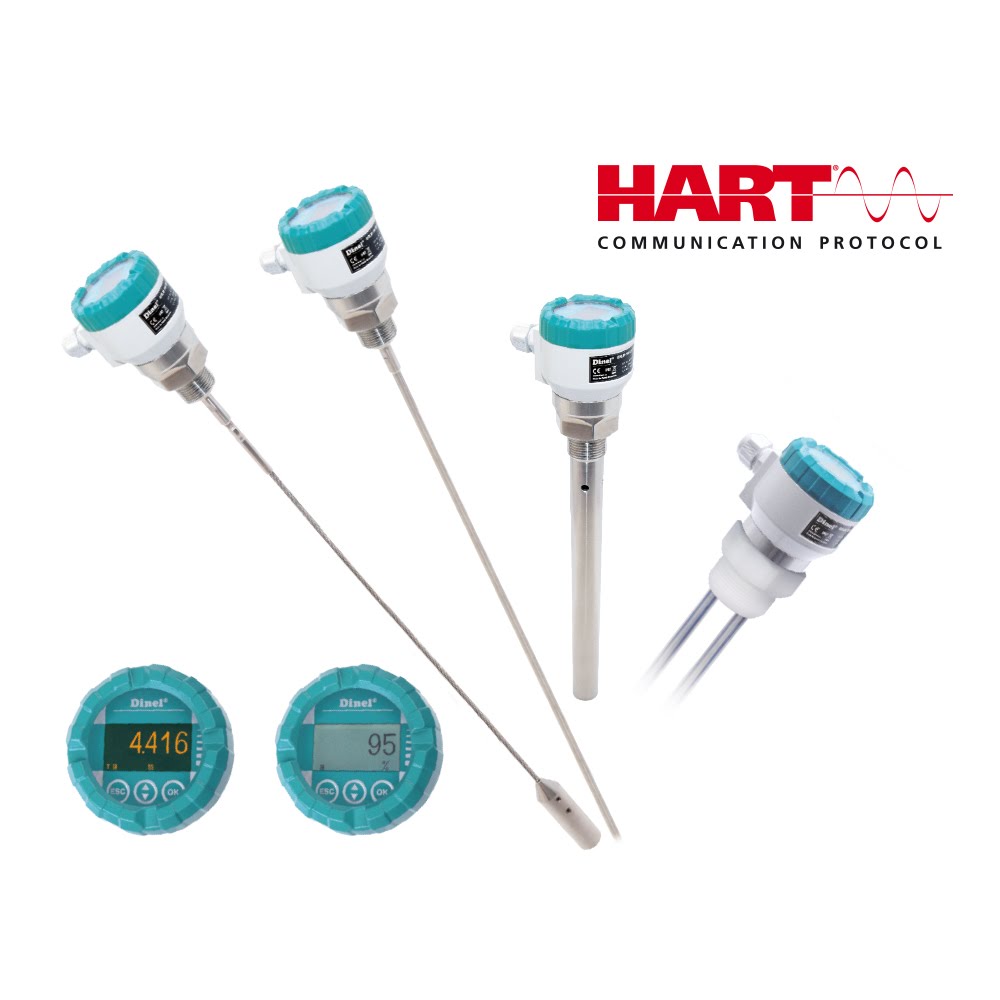

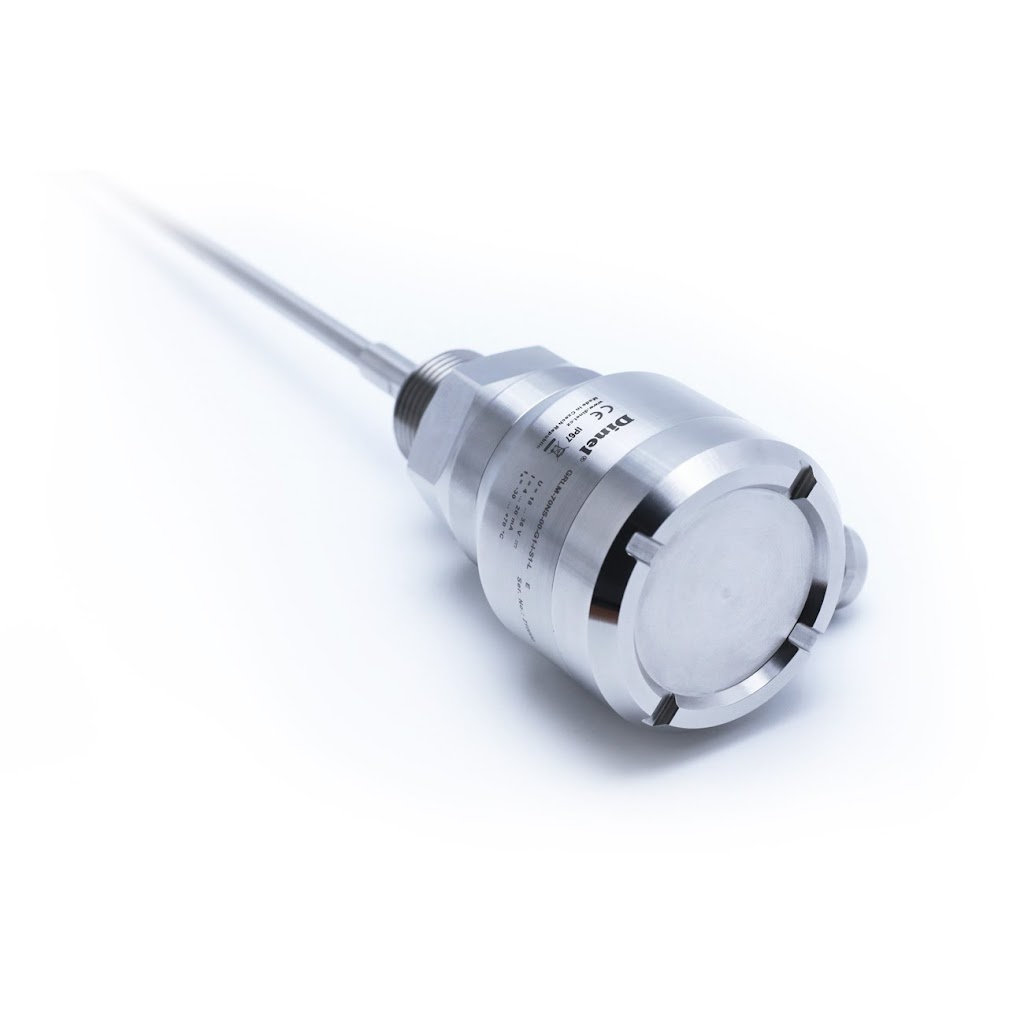

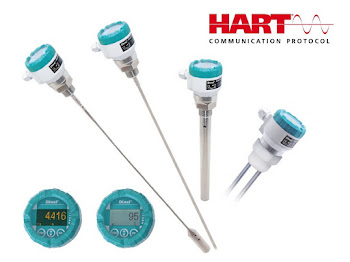

Capacitive level meters CLM-70

New intelligent capacitive level meter with display, HART communication and diagnostics. For continuous level measurement of liquids and bulk solids in all industrial branches.

  • A wide range of applications, direct installation in storage silos, hoppers, vessels, sumps, etc.
  • Variants with fully coated electrodes for aggressive or electrically conductive media.
  • Measured data in real time on the display (OLED or LCD available).
  • Analog output 4 - 20 mA with digital two-way communication HART®.
  • Comparing with reflective level meters, CLM-70 measures along all the electrode in full range (no dead zones).
  • Contrary to radar level meters, also media with extremely low dielectric constants (εr) can be measured.
  • Possible copying the configuration between level meters using the display module.
  • Stainless steel design suitable for the food and pharmaceutical industries.
Варианты изделия

Варианты изделия

Для скачивания
  Язык Имя пользователя Тип файла Последнее обновление
datalist CZ Datasheet CLM-70 pdf 19 / 11 / 2020
datalist EN Datasheet CLM-70 pdf 28 / 5 / 2021
navod CZ Operating Instruction CLM-70 pdf 3 / 12 / 2021
navod EN Operating Instruction CLM-70 pdf 3 / 12 / 2021
